Star - Guangxi Yuchai series diesel generator set

Release date:2014/11/06 click:times

Guangxi Yuchai Machinery Limited by Share Ltd (Stock Code: NYSE:CYD), headquartered in Guangxi Yulin City, founded in 1951, is currently China's largest production base of the internal combustion engine, now has more than 30 wholly-owned, holding, subsidiary company. 1993 for the restructuring of the Sino foreign joint ventures, in 1994 listed on the New York main board, is the domestic industry's first overseas listed companies. More than 9000 employees, annual production capacity of 700000 Taiwan engine.

Yuchai has established 49 overseas offices in the world, 108 overseas after-sales service agencies, more than 3300 service stations, more than 5000 parts sales outlets, and built a scale of domestic industry network maximum, minimum radius of three packs of services, the length of the longest and the shortest response time and service network, business extends to Asia and Europe and the United States, non, Oceania five continents, the products are sold to more than 180 countries and regions, engine production and sales stable industry first.

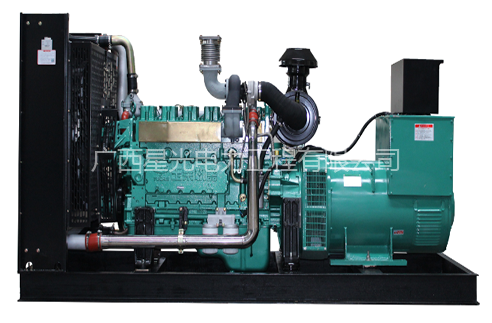

Star ☆ Guangxi Yuchai series diesel generator set (YUCHAI)
机组型号 Generating Set model	机组功率Generating Power KW	发动机型号 Engine model	燃油消耗率 Fuel Consumption rate g/kw·h	引擎缸数/排列 Cylinders/ Arrangement	引擎缸径 Bore mm	引擎行程 Stroke mm	引擎排量 Displace Ment L	机组重量 Generating Weight kg	外型尺寸 Dimensions 长×宽×高 mm
XGY15	15	YC2108D	210	2/L	108	120	2.199	580	1500×700×1300
XGY20	20	YC2115D	210	2/L	115	120	2.493	600	1500×700×1300
XGY30	30	YC2115ZD	205	2/L	115	120	2.493	650	1600×700×1300
XGY40	40	YC4D60-D21	205	4/L	108	115	4.214	850	1800×800×1500
XGY50	50	YC4D85Z-D20	205	4/L	108	115	4.214	900	1800×800×1500
XGY70	70	YC6B100-D20	200	6/L	108	125	6.871	1100	2300×900×1500
XGY90	90	YC6B135Z-D20	200	6/L	108	125	6.871	1230	2400×900×1500
XGY100	100	YC6B155L-D21	200	6/L	108	125	6.871	1300	2400×900×1600
XGY120	120	YC6B180L-D20	200	6/L	108	125	6.871	1400	2400×900×1600
XGY150	150	YC6A230L-D20	203	6/L	108	132	7.252	1500	2600×900×1600
XGY200	200	YC6M350L-D20	200	6/L	120	145	9.839	2000	2900×1060×1800
XGY250	250	YC6M350L-D20	200	6/L	120	145	9.839	2100	2900×1060×1800
XGY280	280	YC6MK420L-D20	200	6/L	123	145	10.338	2500	3000×1100×1800
XGY300	300	YC6MK420L-D20	210	6/L	123	145	10.338	2500	3000×1100×1800
XGY320	320	YC6MJ480L-D20	210	6/L	131	145	11.726	2600	3000×1100×1800
XGY360	360	K1230L-D30	199	6/L	129	165	13	2900	3300×1100×2000
XGY400	400	K1335L-D30	199	6/L	129	165	13	3000	3300×1100×2000
XGY360	360	YC6T550L-D21	195	6/L	145	165	16.35	3300	3500×1500×2200
XGY400	400	YC6T600L-D22	195	6/L	145	165	16.35	3600	3500×1500×2200
XGY450	450	YC6T660L-D20	195	6/L	145	165	16.35	3600	3500×1500×2200
XGY500	500	YC6T700L-D20	195	6/L	145	165	16.35	3800	3500×1500×2200
XGY560	560	YC6TD840L-D20	195	6/L	152	180	19.598	4000	3500×1500×2300
XGY600	600	YC6TD840L-D20	195	6/L	152	180	19.598	4100	3500×1800×2300
XGY640	640	YC6C1020L-D20	195	6/L	200	210	39.584	6200	4500×1800×2600
XGY720	720	YC6C1070L-D20	195	6/L	200	210	39.584	6500	4500×1800×2600
XGY800	800	YC6C1220L-D20	195	6/L	200	210	39.584	6900	4500×1800×2600
XGY900	900	YC6C1320L-D20	195	6/L	200	210	39.584	6980	4500×1800×2600
Remarks: 1.Guangxi Xingguang YuChai diesel generator frequency of 50HZ, 1500rpm, 400V, power factor 0.8 (lag), three-phase four wire, for other special requirements models, please contact our separate parameters. 2.product pictures are for reference only and not as a delivery information, improvement of technology without notice,product models, specifications, configuration, the picture in order to prevail in kind, Guangxi star power reserves the right of final interpretation.
