Star - Weichai series diesel generator sets

Release date:2014/09/28 click:times

Shandong Weichai Power was founded in 1946, China has more than 5000 repair service center, overseas to set up 243 repair service station, the products are exported to more than 110 countries and regions. As to vehicle machine as a leader, to power system as the core, to become the world's leading technology, with sustainable development of core technology, the internationalization of industrial equipment enterprise.

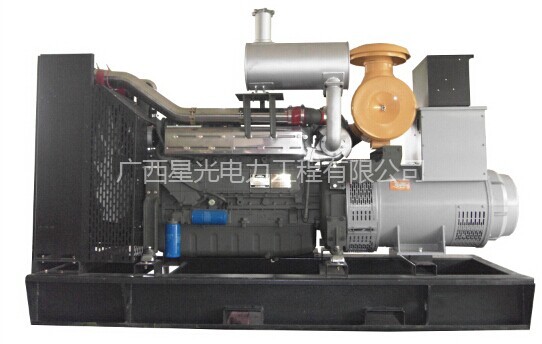

Star ☆ Weichai Power (WEICHAI) series diesel generator set
机组型号 Generating Set model	额定功率Prime Power KW	备用功率Standby Power KW	发动机型号 Engine model	燃油消耗率 Fuel Consumption rate g/kw·h	引擎缸数/排列 Cylinders/ Arrangement	引擎缸径 Bore mm	引擎行程 Stroke mm	引擎排量 Displace Ment L	机组重量 Generating Weight kg	外型尺寸 Dimensions 长×宽×高 mm
XGW22	24	26	D226B-3D	206	3/L	105	120	3.12	780	1600×700×1300
XGW33	30	33	TD226B-3D	206	3/L	105	120	3.12	800	1600×700×1300
XGW45	40	45	TD226B-3D	208	4/L	105	120	3.12	900	1800×800×1300
XGW55	50	55	WP4D66E200	208	4/L	105	120	4.16	960	1800×800×1300
XGW88	80	88	WP4D100E200	205	4/L	105	130	4.5	1300	2300×850×1300
XGW110	100	110	WP4D108E200	205	6/L	105	120	6.23	1380	2500×850×1350
XGW132	120	132	WP6D132E200	209	6/L	105	130	6.75	1430	2500×850×1350
XGW150	135	150	WP6D152E200	210	6/L	126	130	9.726	1630	2600×950×1400
XGW200	180	200	WP10D200E200	210	6/L	126	130	9.726	1630	2600×950×1400
XGW220	200	220	WP10D238E200	200	6/L	126	130	9.726	2160	2600×1000×1800
XGW252	230	252	WP10D264E200	202	6/L	126	155	11.596	2280	3000×1000×1800
XGW280	250	280	WP12D317E200	202	6/L	126	155	11.596	2360	3000×1000×1800
XGW310	280	310	WP12D317E200	202	6/L	126	155	11.596	2600	3000×1100×2000
XGW330	300	330	WP13D385E200	210	6/L	126	155	11.596	2800	3000×1100×2000
XGW350	320	350	WP13D385E200	210	6/L	126	155	11.596	2850	3000×1100×2000
XGW440	400	440	X6170ZD440-4	200	6/L	170	200	27.24	3800	3300×1350×2200
XGW550	500	550	X8170ZD650-4	200	6/L	170	200	27.24	4300	3600×1350×2200
XGW660	600	660	X8170ZD650-4	200	8/V	170	200	36.32	4860	3800×1500×2200
Remarks: 1 Guangxi Xingguang Weichai Power Diesel generator frequency of 50HZ, 1500rpm, 400V, power factor 0.8 (lag), three-phase four wire, for other special requirements models, please contact our separate parameters. 2, product pictures are for reference only and not as a delivery information, improvement of technology without notice, product models, specifications, configuration, the picture in order to prevail in kind, Guangxi star power reserves the right of final interpretation.
